Diamond Turned Components

Aluminium Honeycomb Mirror

Dimensions : 488 X 488 mm Sq
Thickness : 32 mm
ROC : Concave 50000 to 52440 mm

Attained Specifications

Surface Accuracy : Diamond Turned reflecting Surface of λ/2 quality.
Profile Accuracy : 5 microns or better
Focal Point Spread : < 02 mrad (< 3 mm)
Surface Finish : 50 nm RMS or better
Reflectivity : > 85% light in < 3.0 mm Ø circle at the focal point for on-axis incidence.
Coating : Protective Coating

Aspheric Profiles

Mechvac offers a variety of Aspheric Lenses designed for visible or infrared applications.

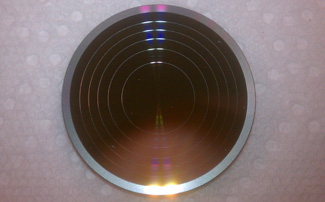

Diffractive Profiles

Mechvac offers a variety of Diffractive Lenses designed for visible or infrared applications.

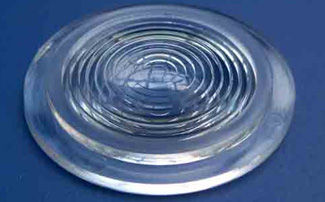

Fresnel Lenses

Mechvac offers a variety of Fresnel Lenses designed for visible or infrared applications.

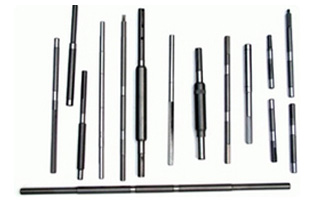

Shafts

Shafts of various lengths and diameters are diamond turned and offered with utmost accuracy.

Cups

Cups of various lengths and diameters are diamond turned and offered with utmost accuracy.

Mirrors

Mechvac offers a variety of Mirrors designed for visible or infrared applications.
