Coating » Diamond Like Carbon Coating ( DLC )

Diamond Like Carbon Coating machine

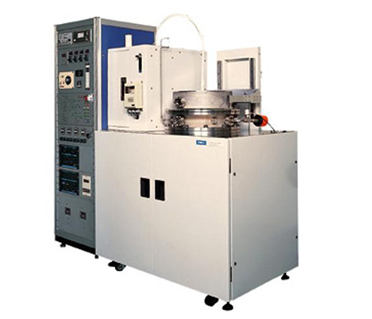

SAMCO PD - 200 D

Diamond-like carbon coating
Diamond-like carbon (DLC) is a class of amorphous carbon material that displays some of the typical properties of diamond. DLC is usually applied as coatings to other materials that could benefit from some of those properties.

SAMCO's PD-200D is an automated, ion-assisted CVD (chemicalvapordeposition) processing system specifically designed for the rapid deposition of DLC Coating (Diamond Like Carbon Coating) on a variety of substrate. Diamond like carbon Coating (DLC) is a class of amorphous carbon material that displays some of the typical properties of diamond. DLC Coating is usually applied as coatings to other materials that could benefit from some of those properties. This system can also be used to an isotropically etch DLC films and silicon-based films at high rates.

OPTICAL COATING
An optical coating is one or more thin layers of material deposited on an optical component such as a lens or mirror, which alters the way in which the optic reflects and transmits light. One type of optical coating is an antireflection coating,


Dimensions :
Main Unit : 1250(W) x 770(D) x 1680(H) mm
Control Unit : 570(W) x 630(D) x 1750(H) mm


Features
1. Can process up to 8" wafers
2. High DLC Coating (Diamond Like Carbon Coating) deposition rates of 300 - 500 nm/min.
3. Produces high-quality, pin-hole free, low stress and uniform DLC films of up to 30 Ám thick
4. Deposits films with wide range of properties (i.e. mechanical, electrical, and optical), which may be tailored to specific applications
5. Computer system/operator interface facilitates easy setup, recipe storage and selection of multi-step deposition and etching recipes
6. Automated system with full manual override

Applications
1. Hard, low-friction wear coatings on magnetic recording heads
2. Durable wear coatings on three dimensional metal bearings or reciprocating parts
3. Microscopically smooth, chemically resistant, protective/release films on injection molds
4. Electrically insulating or conductive wear coatings for sensors and micromachines
5. Infrared-transparent, abrasion-resistant optical coatings on windows or sensors
6. Anisotropic etching of patterned DLC Coating (Diamond Like Carbon Coating)or silicon-based films
